Standing on a construction site, watching a tower crane hoist tons of steel into the air, you might think a wire rope is just… well, a thicker steel rope (a bit thicker than normal). But what’s the truth?
What kind of wire rope does a crane actually use? Yes, it’s a wire rope, but not all crane wire ropes are created equal. Cranes primarily use five high-strength steel wire rope types: 6×19, 6×36, anti-rotation rope, compacted strand rope, and galvanized or plastic-coated rope.
Which one is the right wire rope for your tower crane, mobile crane, or even construction hoist? It depends on the crane type and the rope’s intended use:

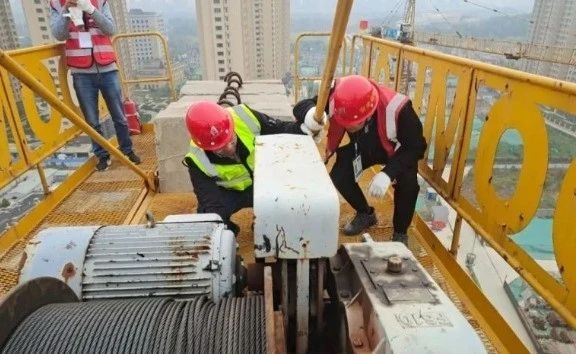

- Tower cranes: Anti-rotation rope for the main hoist; 6×36 rope for trolley/luffing.
- Construction hoists (elevators): Fatigue-resistant galvanized rope for safety.
- Truck cranes:6×19 for boom lifts; 6×36 for heavy lifting.
- LCrawler cranes: Compacted strand rope for heavy lifting.
So, whether you’re shopping for the right rope (and don’t want to waste money on the wrong rope) or are simply curious about what makes crane ropes so special, this is the definitive answer.
First: What makes crane wire rope so special?
When most people hear the word “wire rope,” they probably think of a metal rope capable of pulling and lifting weights. But crane wire ropes are a completely different class of heavy-duty rope. They can not only carry heavy loads but also withstand thousands of bends, twists, and… well, ordinary steel cables aren’t strong enough to lift hundreds of tons. Crane wire ropes feature the following designs:
- High tensile strength. You’ll see numbers like 1770 or 1960. This is the rope’s “grade.” The higher the number, the stronger the rope.
- Due to different load-bearing methods, crane wire ropes must withstand frequent winding, bending, friction, and impact loads. They must be able to pull and withstand repeated winding without breaking.
- A more complex structure determines their flexibility, torsional resistance, and lifespan.
- Surface treatment and lubrication requirements are special. These are the rope’s lifeblood.
- Different applications require specific specifications. Different cranes (tower cranes, crawler cranes, truck cranes) also require the appropriate model.
Next up, what are the 5 types of wire rope used on cranes？
| Type | Best For | Why It Matters |
| 6×19 (Seale / Warrington-Seale) | Boom hoist on truck cranes, crawler cranes | Rust protection survives weather |
| 6×36 (WS / K-compacted variants) | Tower cranes, trolley/luffing systems | More flexible, resists bending fatigue |
| Rotation-Resistant (18×7, 19×7, 35×7, 34×7, compacted/PI variants) | Tower crane main hoist, tall lifts | Prevents dangerous load spinning |
| Compacted-strand (e.g., 6×K36WS, 6×K19S) | Crawler cranes, heavy lifts | Extra-strong, longer lifespan |
| Galvanized / Plastic-Coated Rope(zinc-coated) | Outdoor tower cranes, coastal projects | Rust protection, survives weather |
The wire rope type should match the crane function (main hoist, luffing, trolley) and the original equipment manufacturer (OEM) specifications. If the manual requires a rotation-resistant wire rope, do not use a standard six-strand wire rope.
6×19 (Seale / Warrington-Seale)
This type of rope has fewer, but thicker, outer wires. Think of it as a “tough sheath” rope, effectively resisting abrasion and crushing on drums and pulleys.
| Key features | Typical applications | Pros | Cons |
| Strength: High nominal strength for its size; good crush resistance on drums. Core (heart of the rope): Available in FC (fiber core) for flexibility or IWRC (independent wire rope core) for higher strength & stability. For cranes, IWRC is the usual choice. Surface treatment: Bright (uncoated) or galvanized for corrosion resistance. Lubrication: Pre-lubed at manufacture; you’ll still need periodic relube in service. Structure: 6 strands around a core, outer wires thicker than 6×36. | Boom hoist / luffing on mobile cranes (truck/crawler) Harsh, gritty sites where abrasion beats up ropes Multi-layer drum winding where crush resistance matters | Tough outer layer; resists abrasion and drum crushing Solid choice for boom hoist and rugged conditions Simple to inspect | Less flexible; lower bending fatigue life than 6 × 36 Not ideal for tight sheaves or high-cycle hoist ropes |
If the work environment is tough and the rope will be “sandpapered”, then the 6×19 IWRC rope is suitable. If the lifting work requires high-strength bending, I will upgrade to 6×36 or higher compression type
6×36 Construction (Warrington-Seale / Compacted options)
Its unique feature is the greater number and finer steel wires in each strand. This provides greater flexibility and longer fatigue life under repeated bending.
| Key features | Typical applications | Pros | Cons |
| Strength: Slightly lower abrasion toughness than 6×19, but better bending fatigue. Core: IWRC preferred for crane duty; FC if flexibility is crucial and load is moderate. Surface treatment: Bright or galvanized; compacted (K) versions raise strength & wear life. Lubrication: Pre-lubed, with relube schedule based on environment and duty cycle. Structure: 6 strands × many small wires; WS (Warrington-Seale) layer design spreads stress. | Running/hoist rope on tower cranes (trolley, jib) Mobile crane main hoist where rotation isn’t critical Sites with lots of lifting cycles (bending over sheaves all day) | Flexible, friendly to sheaves with longer fatigue life Smooth handling; compatible with many sheave groove profiles Compacted 6×K36 versions add strength & drum behavior | Outer wires are thinner and can wear faster if abrasive dust is constantly Not rotation-resistant—loads may spin on high lifts |
If the rope is subject to severe flex, my default choice is the 6×36 IWRC. For high-strength or multi-layer drums, I prefer the compression-type 6×K36 IWRC.
Rotation-Resistant (18×7, 19×7, 35×7, 34×7; compacted/PI variants)
Its main difference is its opposed structure, where the torques of one layer cancel each other out. This results in less rotation of the load – crucial for high-altitude lifts.
| Key features | Typical applications | Pros | Cons |
| More sensitive to handling errors, poor fleet angles, and damaged sheaves Often require no swivel (or only specific, OEM-approved ones) Higher price and stricter installation (end-terminations, pre-tensioning) | Main hoist on tower cranes (the classic use case) High-hook heights on mobile cranes where load spin is dangerous Precision picks where swivels may be restricted | Greatly reduces load rotation (safety + control) Modern compacted/PI versions offer strong fatigue life and cleaner drum spooling Better vertical stability on narrow loads | More sensitive to handling errors, poor fleet angles, damaged sheaves Often require no swivel (or only specific, OEM-approved ones) Higher price and stricter installation (end-terminations, pre-tensioning) |
Compacted-Strand Ropes (e.g., 6×K36WS, 6×K19S; also compacted RR ropes)
Its main special feature is that the strands are mechanically compressed (pressed) after being closed. This increases the metal cross-section, resulting in greater strength, a smoother surface, and improved roller properties.
| Key features | Typical applications | Pros | Cons |
| Strength: Noticeably higher breaking load vs non-compacted peers. Core: Typically IWRC; compacted rotation-resistant versions also exist and are common on tower cranes. Surface treatment: Bright or galvanized, with optional PI. Lubrication: Pre-lubed; compacted surface helps retain lube and reduce fretting. Structure: Same strand counts (6×36, 6×19, 35×7) but denser, smoother strands. | Heavy-duty hoist ropes, multi-layer drums, high line pulls Crawler cranes and large mobile cranes Tower crane main hoist (when paired with rotation-resistant design) | Higher strength for the same diameter Better wear and crush resistance on drums Often longer service life in tough duty | Higher upfront cost Slightly stiffer; check D/d (sheave diameter to rope diameter) limits Needs correct groove profile for best life |
Galvanized / Plastic-Coated Rope
- Features： Extra layer against rust and wear.
- Applications： Outdoor tower cranes, marine or coastal jobs.
- Strength： Similar to regular, longer service life outdoors.
- Core： IWRC recommended.
- Surfac： Zinc-coated or plastic jacket.
- Pros： Corrosion resistance, less maintenance.
- Cons： Slightly stiffer, costlier.
Then, Matching Rope to Crane Type
Always check your crane manual. One crane can use different ropes for different jobs (hoist vs luffing vs guy ropes
| Crane Type | Best Rope Choice | Why |
| Tower crane | Rotation-resistant for hoist; 6×36 for trolley/luffing | Prevents spinning + handles bending |
| Construction hoist | 6×36 galvanized | Fatigue + corrosion resistance |
| Truck crane | 6×19 for boom hoist; 6×36 for lifting | Balances strength and flexibility |
| Crawler crane | Compacted strand | Heavy-duty strength, longer life |
Finally
So, what type of wire rope is used on cranes? There isn’t just one answer—crane ropes usually come in four or 5 main types, and each matches a different kind of machine:
- Tower cranes often use rotation-resistant ropes for the main hoist (to stop the load from spinning) and locked-coil ropes for the mast or jib support.
- Construction hoists (elevators on building sites): need non-rotation ropes with good flexibility and safety against twisting.
- Mobile truck cranes usually rely on compacted ropes on the hoist because they handle very heavy loads in a smaller diameter.
- Crawler cranes: use a mix: compacted ropes for lifting, rotation-resistant ropes for boom hoisting, depending on the job.
In short, crane wire ropes aren’t just “thick cables.” They’re specialized lifelines, carefully matched to the crane and the task. Knowing the right type not only keeps the job safe but also saves you from costly mistakes when buying replacements.
