How to Choose the Right Construction Hoist Cable for Safety and Efficiency?

In modern construction projects, efficiency and safety are of vital importance. Construction hoists are indispensable equipment on construction sites for vertical transportation of workers and materials. However, behind its reliable operation lies a key component that is often overlooked – the construction hoist cable. The construction hoist cable is an important component connecting the main control box of the hoist and the hoist motor, and it has the function of transmitting current and signals.

This question introduces the basic information of construction hoist cables as well as the best practices for installation and maintenance. Whether you are a project manager, contractor or equipment supplier, choosing the right cable not only ensures smooth operation, but also guarantees long-term safety and reduces maintenance costs.

What Is a Construction Hoist Cable?

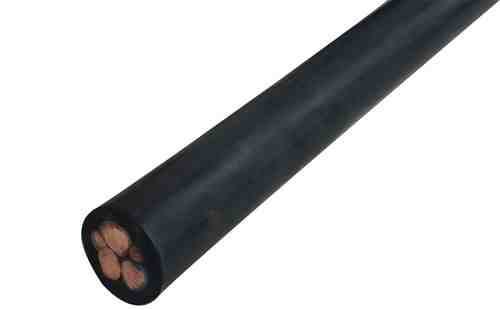

A construction hoist cable, or alternatively referred to as a special cable for construction hoist, is a resilient yet flexible cable designed to withstand the special demands of hoist systems. Contrary to standard electric cables, these cables are better suited to resists:

• Repetitive vertical flexure and movement.
• Severe mechanical stress during lifting and lowering.
• Habitable outdoor environments such as rain, dust, UV sunlight, and changing temperatures.

Construction hoist cables essentially perform two major roles:

• Power Supply – supplying power to the hoist motor for powering vertical lift.
• Control & Signal Transmission – enabling operators to control speed, direction, and safety systems.

No construction hoist, however advanced, can survive without reliable cables since it is at risk of downtime or safety hazards without them.

Key Features of Special Cables for Construction Hoists

When checking cables on elevators, there are certain characteristics of the highest importance

• Low bending radius and flexibility

Construction hoist cables have to bend thousands of times daily. Quality cables are made from fine-twisted copper wires and rubber or PVC sheaths, so they can bend without cracking or wire breakage.

• Resistance to repeated stress

These cables are resistant to reciprocating motion as well as internal fatigue. For instance, high-quality cables like CPTC possess resistance to over 50,000 reciprocating strokes as well as 120,000 bending cycles without the incidence of wire breakage.

• Resistant to harsh environments

The conditions on a construction site are extremely harsh. The elevator cable must be oil-resistant, wear-resistant, moisture-resistant, UV ray-resistant and resistant to extreme temperatures in a manner that it will last for a long period of time.

• Safety-oriented design

Flame-retardant and halogen-free solutions can decrease fire hazards and poisonous fumes, making it more secure for workers in emergency situations.

• Extended service life

Investing in durable and sturdy cables will minimize downtime, replacement and accident hazards. In the long run, it is a cost-effective and efficient solution.

Types of Construction Hoist Cables

Different types of hoist cables are suited for specific applications. The most common include:

Cable Type	Key Features	Best Use Case
Flat Cable	Space-saving design, neatly stacks in parallel runs	Multi-cage hoists, limited space installations
Round Flexible Cable	Rubber/PVC sheathed, durable, highly flexible	General-purpose construction hoists
Control Cable	Designed for signal & control, often shielded	Ensures precise speed, direction, and safety system operation
Reinforced Cable (with Steel/Tensile Core)	Added strength to withstand tension & long vertical runs	High-rise projects, heavy-duty material hoists
Low-Smoke, Halogen-Free (LSZH) Cable	Flame-retardant, low toxic smoke, safer in fire	Urban construction sites with strict fire safety requirements

By choosing the correct type, contractors ensure their hoist can perform optimally under specific site conditions.

How to Select the Right Construction Hoist Cable

Choosing the right cable involves careful consideration of both technical and practical factors:

• Match the Cable to the Hoist Type

Passenger hoists require enhanced safety and smooth performance.

Material hoists may tolerate heavier-duty but less sensitive cables.

• Load and Travel Height

Taller buildings require longer cables, which exert greater tension and weight. Reinforced designs may be necessary.

• Environmental conditions

Outdoor elevators exposed to sunlight, rain or chemicals should use UV-resistant and weatherproof cables.

Cold weather projects may require cables with enhanced low-temperature flexibility.

• Rated voltage and rated current

Make sure the selected cable meets the electrical requirements of the elevator to avoid overheating or energy loss.

• Compliance

Always check whether the cables comply with international and local safety standards (IEC, CE, UL, CCC, OSHA compliance).

• Supplier reliability

Cooperate with manufacturers that provide verified and tested products.

Installation & Maintenance Tips

Even an ideal construction hoist cable needs to be treated properly to maximize lifespan. The below are some important tips:

Installation Best Practices:

• Avoid sharp bending and excessive force pulling during installation.
• Use appropriate cable trays or guidance systems to prevent abrasion.
• Proper termination and proper connections.

Regular Inspection

• Check for cuts, abrasions, and insulation damage before each workday.
• Check for conductor fatigue signs, i.e., stiffness or cracking.
• Check attachment points at drum and cage for wear or stress.

Preventive Maintenance

• Keep cables dry and clean whenever possible.
• Lubricate guide pulleys to reduce friction.
• Replace cables immediately if insulation failure or conductor exposure is found.

End-of-Life Replacement

• Don’t wait for disaster. Follow the manufacturer’s recommended replacement schedule.

Regular maintenance can allow cables to serve years of trouble-free life, saving downtime and avoiding costly accidents.

Conclusion

The correct construction hoist cable is more than an accessory; it’s an important safety, efficiency, and cost-saving element on-site. Understanding the unique features of the specialized cables, their necessary specifications, and the appropriate type of cable to employ on your project can enable contractors to ensure the safety of workers and investment.

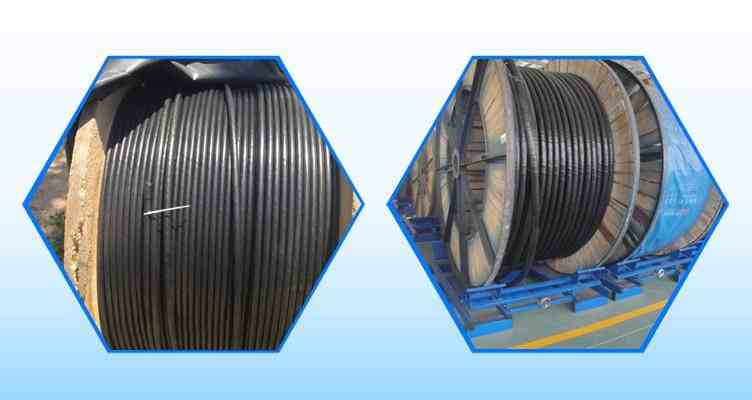

CPTC construction hoist cables are stringently tested and designed for abusive conditions, providing the strength, flexibility and reliability required on today’s construction site. The CPTC cable will withstand over 50,000 reciprocation cycles and 120,000 cycles of bending without failure of the wire, safeguarding the safe and efficient operation of your lift for years to come.

Investing in the right cables is an investment in performance and safety – a worthwhile investment, your construction hoist will never fail you.
