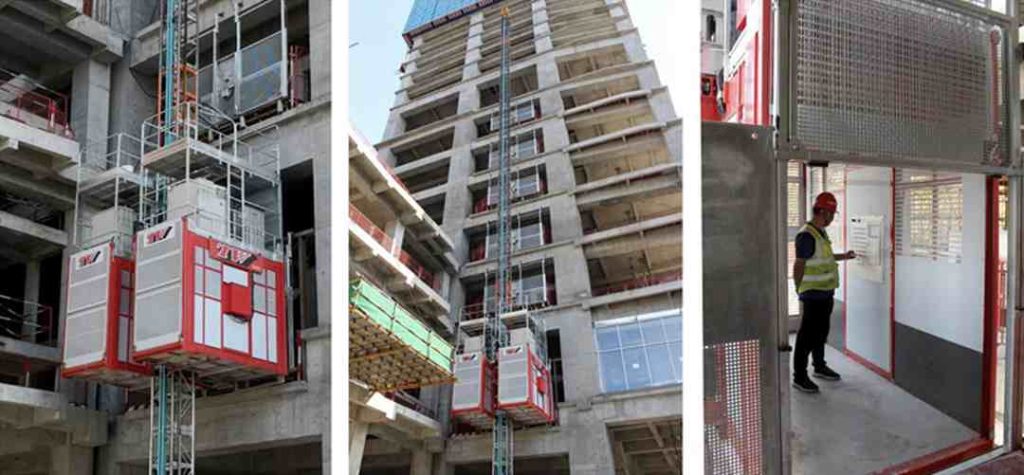

Construction Hoist Driving Systems: Which One Fits Your Project?

As an important piece of equipment on modern construction sites, the choice of driving mode for construction hoists directly affects the performance and usage effect of the hoists. According to the different driving methods, construction hoists are mainly divided into three types: electric drive, hydraulic drive and mechanical drive. The different drive types of construction hoists not only affect the lifting speed and load capacity of the hoists, but also determine their usage locations and methods.

In this article, we will explain what an elevator drive is, detail the three main types of drives, and provide guidance on how to choose the right system for your project.

What Is a Construction Hoist and How Does It Work?

Construction hoists (sometimes also called building hoists, construction elevators or material hoists) are temporary lifting systems installed at construction sites, used for vertical transportation of personnel and heavy materials. Unlike permanent lifts, these devices are designed to withstand harsh outdoor conditions and frequent heavy-load usage.

This system is usually composed of the following parts:

• Lifting cage or car: A compartment for carrying people or goods.
• Mast or guide rail: A vertical steel structure that guides the lift.
• Drive system (hoist driver) : The mechanism that drives the elevator.
• Safety devices: anti-fall devices, limit switches and overload protection devices.

We previously wrote an article for a detailed introduction. Friends who are interested can click here to view: What Is a Construction Hoist?

When people ask, “What is an hoist driver?” ” At that time, they usually refer to the driving mechanism that provides lifting power. This drive system is the “engine” of the elevator. Different drive types directly affect performance, safety and cost.

Main Drive Types of Construction Hoists

Construction hoists are classified into electric drive, hydraulic drive and mechanical drive according to their driving methods. Electric drive is highly efficient and energy-saving, hydraulic drive is stable and reliable, and mechanical drive has a simple structure.

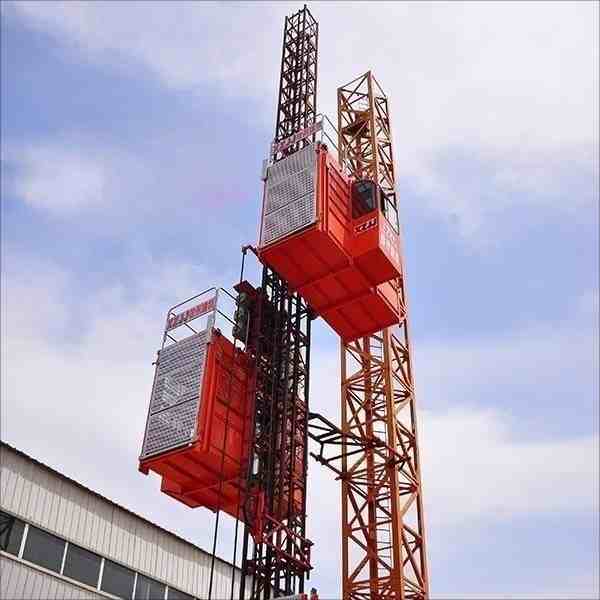

1. Electric Drive Construction Hoist

The electric drive type is usually based on the rack and pinion system and is the most widely used drive method for construction hoists today.

Working principle

• The mast is fitted with a gear rack.

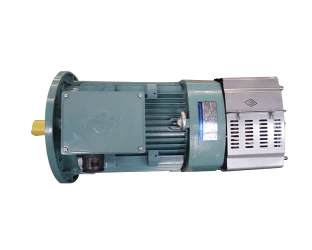

• The lifting car is equipped with an electric motor connected to a pinion.
• When the motor rotates, the pinion moves along the rack, thereby lifting or lowering the car.

Advantages

• High efficiency: Electric drive offers a rapid lifting speed, saving time on busy construction sites.
• Strong load capacity: They can withstand heavy loads and are suitable for carrying people and large quantities of materials.
• Reliable safety: Compared with wire rope lifts, the rack and pinion system is robust and durable, and less prone to slipping.
• Versatility: It is highly suitable for high-rise building projects that require long-term use.

Disadvantage

• Compared with simple systems, the initial cost is relatively high.
• Regular maintenance of the motor, gears and lubrication is required.

Application

Electric-driven construction hoists are most commonly found in high-rise buildings, large commercial complexes, and projects that require frequent vertical transportation.

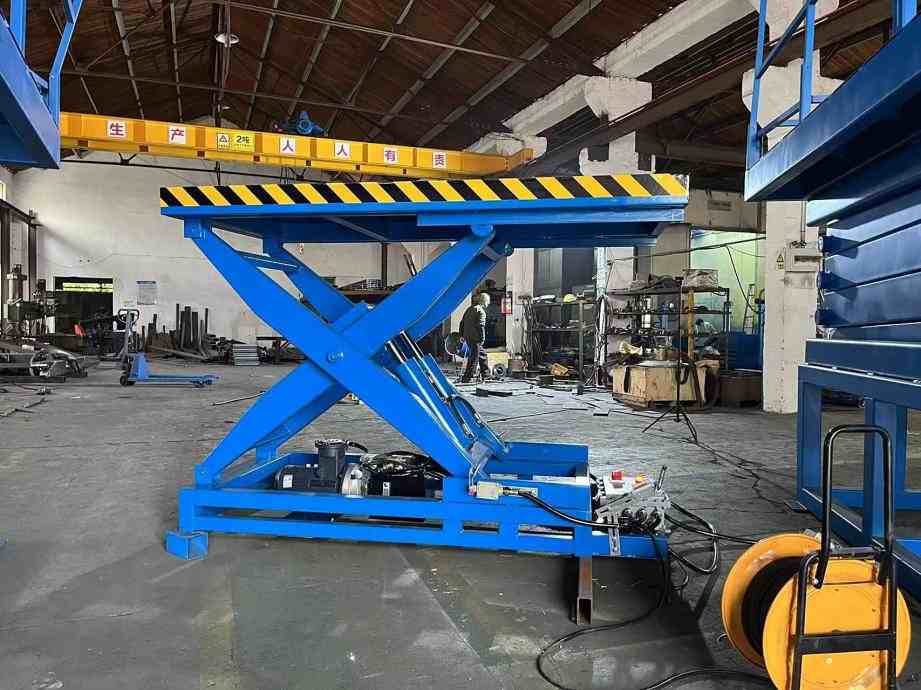

2. Hydraulic Drive Construction Hoist

The hydraulic-driven construction hoist uses a hydraulic system to transmit pressure to achieve lifting actions. The pump delivers hydraulic oil to the cylinder, which pushes the piston to lift the elevator.

Advantages

• Smooth operation: The hydraulic system offers a smooth and comfortable operating experience.
• Low noise: Compared with gear drive systems, they are quieter.
• Safety under load: Even if the power supply is interrupted, the hydraulic system can still firmly support the load.

Disadvantage

• Height limitation: Hydraulic systems are usually not suitable for very tall buildings.
• Slow speed: They cannot match the rapid lifting speed of electric systems.
• Maintenance issue: Hydraulic oil may leak and requires careful monitoring.

Application

Hydraulic hoists are ideal choices for medium and low-rise projects as well as construction sites that emphasize noise reduction. They are also suitable for situations where smooth lifting is more important than speed.

3. Mechanical Drive Construction Hoist

The mechanical hoist is one of the earliest types of construction hoists. They usually use winches, drums or electric hoisting motors to pull the steel wire rope, thereby raising or lowering the hoist cage.

Advantages

• Simple design: Easy to install and operate.
• Low cost: More economical than electric or hydraulic systems.
• Suitable for short-term projects: Appropriate for temporary or small-scale use.

Disadvantage

• Low safety level: The steel wire rope may slip or wear out over time, posing a potential danger.
• Limited lifting capacity: Not suitable for heavy-load or high-rise building projects.
• Poor stability: Compared with rack and pinion hoists, it is prone to swinging and uneven lifting.
• High noise: During the lifting process of mechanical drive elevators, there may be significant vibration and noise, which can have a certain impact on the working environment and personnel health.

Application

Mechanical hoists are rarely used in modern high-rise buildings, but they can still be seen on small construction sites or in temporary applications where cost is the main consideration.

Comparison of Different Drive Types

Drive Type	Lifting Capacity	Speed	Safety	Height Limit	Cost	Typical Use
Electric (Rack & Pinion)	High	Fast	Excellent	Very tall buildings	Higher	High-rise, long-term projects
Hydraulic	Medium	Moderate	Good	Limited to medium heights	Medium	Mid-rise projects, quiet environments
Mechanical	Low	Slow	Lower	Limited	Low	Small projects, temporary use

This comparison shows why electric drives dominate large-scale construction: they balance capacity, safety, and efficiency better than the other options.

How to Choose the Right Drive Type for Your Project?

The proper construction hoist drive type to select is based on your project needs:

• Project Height
  • High-rise (above 10 floors): Electric drive is optimal.
  • Low- to mid-rise (below 10 floors): Hydraulic or mechanical can suffice.

• Load Requirements
  • Heavy loads (manpower + materials): Electric drive.
  • Light loads: Hydraulic or mechanical can be more budget-friendly.

• Budget
  • Limited budget: Mechanical drive provides cost savings but compromises on safety and performance.
  • Higher investment: Electric drive yields long-term efficiency and reliability.

• Work Environment
  • Noise-prone areas (near hospitals, residential neighborhoods): Hydraulic drive is quieter.
  • Severe, high-impact areas: Electric drive supports heavy-duty operation.

By taking these factors into account, contractors and project managers are able to make sound choices that optimize safety and productivity.

Final Thoughts

The construction hoist’s drive system defines its performance, safety, and suitability to different projects. Electric drive systems are most common in modern high-rise buildings due to their efficiency, reliability, and safety. Hydraulic systems are suitable for mid-rise or special projects with requirements for smooth and silent operation, while mechanical drives remain a worthwhile alternative in small-scale, low-cost, or temporary applications.

Understanding the strengths and weaknesses of each style of construction hoist drive will allow you to select the most suitable system for your next project. Carefully chosen hoist not only ensures safe vertical transportation, but it also has a significant role in overall construction efficiency.
