LTD6.3 and LTD8.0 are the two most common traction hoists used on suspended platforms, typically paired with ZLP630 and ZLP800 gondolas. Although their external appearance is almost identical, their load capacity, motor power, wire rope size, and internal transmission components are significantly different.
Understanding these differences is essential when selecting the right hoist for your suspended platform system.
LTD6.3 vs LTD8.0 Hoist: Load Capacity and Internal Gear Differences
1. Load Capacity and Technical Specifications
The most obvious difference lies in the model designation itself. The numbers represent the rated lifting force in kilonewtons (kN), which directly determines how much weight the hoist can safely lift.
| Parameter | LTD6.3 Hoist | LTD8.0 Hoist |
| Rated Lifting Force | 6.3 kN (630 kg) | 8.0 kN (800 kg) |
| Motor Power | 1.5 kW | 1.8–2.2 kW |
| Lifting Speed | 9.0–11.0 m/min | 8.0–10.0 m/min |
| Steel Wire Rope Diameter | 8.3 mm | 8.6 mm or 9.1 mm |
| Hoist Net Weight | 45–53 kg | 50–87 kg (depending on housing type) |
The numbers in the model names represent the rated lifting force in kilonewtons (kN), which dictates the total maximum weight the hoist can safely handle.
- LTD6.3: Engineered for light-to-moderate transit. Providing a rated lifting force of 6.3 kN, it safely lifts up to 630 kg. It serves as the standard pairing for ZLP500 and ZLP630 suspended platforms.
- LTD8.0: Designed for heavy-capacity transit. It bumps the rated lifting force up to 8.0 kN, raising the single-hoist load limit to 800 kg. This model is the primary drive engine for larger ZLP800 platforms.
To handle that extra 170 kg of weight safely, the LTD8.0 demands a more robust motor, heavier internal parts, and thicker wire ropes.
2. Internal Gear and Drive Mechanism Differences
Although both models share the same operating principle:
Electromagnetic Brake → Motor → Worm Shaft → Gear Reducer → Rope Gripping Mechanism
However, because the LTD8.0 regularly handles much higher torque demands, it employs significantly stronger internal transmission components.
Gear Sizing and Tooth Profiles
The internal gear disk, worm gear, and reduction gear sets in the LTD8.0 feature thicker module sizes (larger teeth) and a wider gear face. This beefed-up design distributes high torsional load across a larger surface area, effectively preventing gear stripping, tooth fractures, or premature wear under heavy weight.
Materials and Wear Resistance
High-quality manufacturers utilize specialized copper alloys (often a 94% copper turbine configuration) to guarantee low friction coefficients and superior heat dissipation. In the LTD8.0, the internal gear ring and rope distributor are explicitly reinforced and hardened compared to the LTD6.3 to better resist structural deformation under continuous high stress.
Wire Rope Traction Mechanism
One important difference between the two hoists is the wire rope diameter.
| Model | Rope Diameter |
| LTD6.3 | Ø8.3 mm |
| LTD8.0 | Ø8.6 mm or Ø9.1 mm |
Motor Differences
The increased load capacity of the LTD8.0 also requires greater motor output.
| Model | Motor Power |
| LTD6.3 | 1.5 kW |
| LTD8.0 | 1.8–2.2 kW |
Are the Internal Parts Interchangeable?

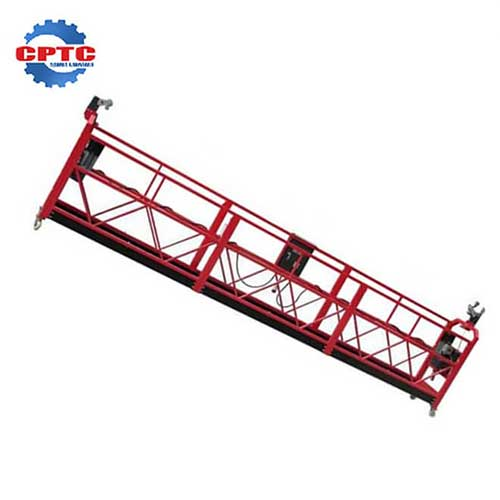

ZLP Series Suspended Platform ZLP Series Suspended Platform
ZLP Series Suspended Platform
Non-Interchangeable Parts (Must Be Model-Specific)
- Worm Gear & Reduction Gears: The tooth profiles and modules differ to accommodate the distinct torque profiles and lifting speeds.
- Rope Wheel (Drive Sheave) & Wire Rope Guide: Machined for different wire rope diameters (Ø8.3 vs. Ø8.6 mm).
- Shafts and Bearings: Certain internal load-bearing shafts and heavy-duty bearings are oversized on the LTD8.0.
Commonly Shared Parts
- Electromagnetic Brake Assembly
- Internal Rectifier
- Basic Motor Housing & External Casing (on many standardized manufacturer versions)
- Oil Seals
Because dimensional tolerances and designs vary between manufacturers, compatibility should always be verified before replacing components.
Which One Do You Need?
Choosing between these two workhorses comes down to a simple assessment of your daily site requirements:
- Choose the LTD6.3： if you are operating a standard ZLP630 platform for regular exterior painting, window cleaning, or light rendering work where total platform and worker weight won’t exceed 630 kg. It offers slightly faster transit speeds and a lighter physical unit weight for easier handling during installation and maintenance.
- Upgrade to the LTD8.0：if you are handling heavy-duty construction tasks (curtain wall installations, heavy masonry work, or high-rise glazing) utilizing a ZLP800 platform. The heavier internal gearing, stronger motor, and thicker rope compatibility ensure you remain fully compliant and safe under maximum loads.
